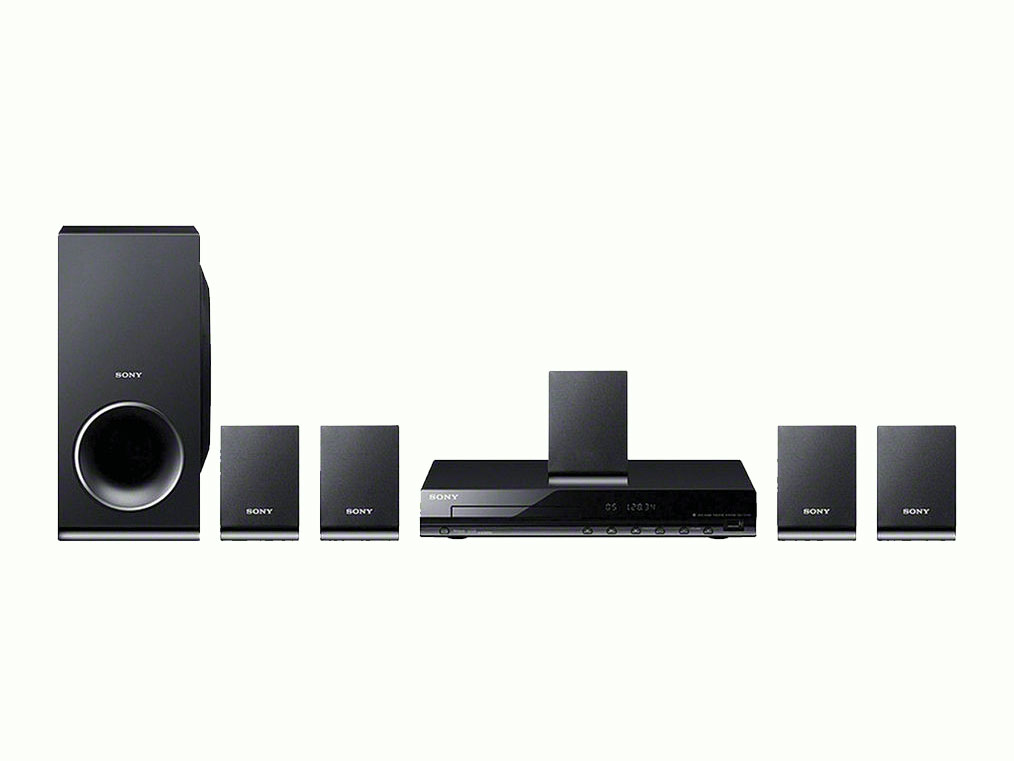

Home Theater System 110-240 Volt, 50/60 Hz Sony DAV-TZ140

Technical Specification

Plays

REA/RCE Protected Discs (Region Code Enhanced)

Advanced Hardware Chip

Yes

DVD, VCD, CD Player

Yes

Disc Capacity

Single disc tray

Convenience Features

Multiple Disc Resume

10 Discs (CD/VCD) 5 Discs DVD

DVD/SA-CD/VCDCD Player

Yes

Playback Features

Play Mode(s) : Repeat All (CD/DVD/VCD); Repeat Title/Chapter/Track; Program (CD Only); Shuffle; Resume from Power Off (CD/DVD/VCD); Resume from Stop (CD/DVD/VCD/Xvid/JPeg)

Disc Based Player

CD (CD-DA), CD-R/RW, CD-R/RW Multi Session

Yes

JPEG

Yes (via: DVD, CD & USB)

MP3

Yes (MP3/ID3Tag Ver.1.1/ID3Tag Ver.2.0 DVD, CD & USB)

WMA via

Yes (via: DVD, CD & USB)

Inputs and Outputs

Analog Audio Input(s)

1 (Front-Mini Jack)

Composite Video Output(s)

1 (Rear)

HDMI™ Connection Output(s)

1 (rear)- Up to 1080P

USB Port(s) :

1 (Front)-See Owners Manual for devices supported

Antenna Terminal (FM 75 Ohm)

Yes

Audio Formats

2ch STEREO

Yes

A.F.D. Multi, A.F.D. Standard

Yes

LPCM

Yes (2ch.) - Supports out via HDMI

MPEG2 AAC

Yes (AAC Only via: DVD, CD & USB), WMA 9 Standard audio support as well

Audio

Audio Power Output

Amplifier: 300W (50WX5 +50W Sub, 8Ohms, 1kHz, 10%THD)

Tuning

FM: 87.5 MHz-108.0 MHz (100 kHzstep)

Video Features

DVD Playback

Yes

DVD+R Read Compatibility

Yes (DL as well)

DVD+RW Read Compatibility

Yes

DVD-R Read Compatibility

Yes (DL as well)

DVD-RW Read Compatibility

Yes

VCD Playback

Yes (VCD/SVCD)

Language

English/Spanish/French/Italian/Dutch/Portuguese/Swedish/Greek/Russian/Chinese/Thai + 5 others

Parental Control

Yes

BRAVIA® Theatre Sync

Yes

HDMI™ Upscaling

Yes (up to 1080p)

Amplifier

Dolby® Digital, Dolby® Pro Logic® Decoding,  Dts® Decoding

Yes

Equalizer

Preset EQ

Yes (Auto/ Movie/ Music/ TV/ Game)

Surround Speaker

Enclosure Type

Bass Reflex

Front Grille/Material

Fixed - Cloth

Input Terminal

Push Type

Rated Impedance

8 ohm

Speaker System

1 Way (Full Range)

Speaker Unit

1

Type

Micro Sat.

Woofer Unit

55mm

Subwoofer

Speaker System

Bass Reflex

Speaker Terminal Type

Push Pin

Speaker Unit

130mm

Center Speaker

Enclosure Type

Bass Reflex

Front Grille/Material

Fixed - Cloth

Input Terminal

Push Type

Magnetically Shielded

Yes

Speaker Unit

1 Way (Full Range)

Supplied Cable

2 Meters

Woofer Unit

55mm

Impedance

8 ohms

Speaker Type

Full Range Bass Reflex

Front Speaker

Enclosure Type

Bass Reflex (Ported)

Front Grille/Material

Fixed - Punched Cloth

Rated Impedance

8 ohm

Speaker System

1 Way (Full Range)

Type

Micro Sat.

Woofer Unit

55mm

Power

Power requirement

100-240 Volt/ 50-60 Hz

Power Consumption (in Operation)

29W

Power Consumption (in Standby)

0.4W

Weights and Dimensions

Main Unit Dimensions (Approx.)

2 ¼”H ×13 ½”W ×12 7/8”D (340×56×325 mm)incl. projecting parts

Front & Speakers

4 ¾”H ×3 3/8”W × 4”D (83×119×100 mm) incl. projecting parts;

Surround Speakers

4 ¾”H × 3 3/8”W × 4”D (83×119×100 mm) incl. projecting parts

Subwoofer

12 ½”H ×6 3/8”W × 11 5/8”D (160×315×295 mm) incl. projecting parts

Main Unit Weight Approx.

4 lb 11 oz (2.1 kg),

Front Speakers

13 oz (0.35 kg)

Center Speaker

16 oz (0.43 kg

Surround Speakers

14 oz (0.39 kg)

Subwoofer

6 lb 10 oz (3.0 kg)

In the Box

Remote (RM-ADU138), FM Antenna, AA Battery, Warranty Card, Composite Video Cable
