MODEL FARP12GFBWM Voltage 220-240V 50HZ Type Heat Pump BTU/Hr (cool/heat) 12000 / 12600 SYSTEM FEATURES Amps (cool/heat) 4.87 / 4.54 Watts (cool/heat) 1097 / 1024 Energy Class (EER / COP) A /A Refrigerant R410A Compressor Type Rotary Dehumidification (L/pints per hr) 1.4 / 3.0 Connection Pipe Liquid (mm/in) 6.35 / .25 Connection Pipe Gas (mm/in) 12.7 / .50 Approvals CE, RoHS Color White EVAPORATOR DIMENSIONS & WEIGHT Height x Width x Depth (mm) 274 x 848 x 190 Height x Width x Depth (in) 10.8 x 33.4 x 7.5 Net Weight (kg/lb) 10.0 / 22.0 CONDENSER DIMENSIONS & WEIGHT Height x Width x Depth (mm) 540 x 848 x 320 Height x Width x Depth (in) 21.3 x 33.4 x 12.6 Net Weight (kg/lb) 35.0 / 77.0 Shipping Weight and Dimension Shipping Dimension Indoor: 14.5"H x 36"W x 10.75"D/ outdoor: 23.5"H x 35"W x 14.5"D Shipping Weight: Indoor: 28.7 Lb./ outdoor: 84 Lb. CONTAINER LOADING 20' / 40' / 40'HC without tubing kits 98 / 210 / 243

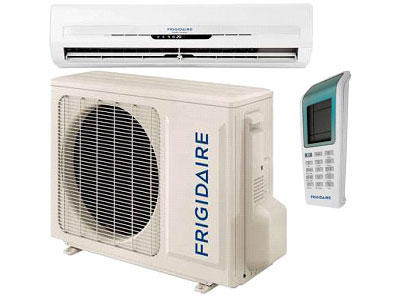

MODEL
FARP12GFBWM
Voltage
220-240V 50HZ
Type
Heat Pump
BTU/Hr (cool/heat)
12000 / 12600
SYSTEM FEATURES
Amps (cool/heat)
4.87 / 4.54
Watts (cool/heat)
1097 / 1024
Energy Class (EER / COP)
A /A
Refrigerant
R410A
Compressor Type
Rotary
Dehumidification (L/pints per hr)
1.4 / 3.0
Connection Pipe Liquid (mm/in)
6.35 / .25
Connection Pipe Gas (mm/in)
12.7 / .50
Approvals
CE, RoHS
Color
White
EVAPORATOR DIMENSIONS & WEIGHT
Height x Width x Depth (mm)
274 x 848 x 190
Height x Width x Depth (in)
10.8 x 33.4 x 7.5
Net Weight (kg/lb)
10.0 / 22.0
CONDENSER DIMENSIONS & WEIGHT
540 x 848 x 320
21.3 x 33.4 x 12.6
35.0 / 77.0
Shipping Weight and Dimension
Shipping Dimension
Indoor: 14.5"H x 36"W x 10.75"D/ outdoor: 23.5"H x 35"W x 14.5"D
Shipping Weight:
Indoor: 28.7 Lb./ outdoor: 84 Lb.
CONTAINER LOADING
20' / 40' / 40'HC without tubing kits
98 / 210 / 243
Heat (Heat Pump) /CoolRemote Control with Time-of-Day Clock12000 / 12600 Heat Pump Split Air ConditionerDeluxe Comfort FunctionAutomatic 24-Hour On/Off TimerElectronic Display on Evaporator4 Fan Settings (High, Medium, Low and Auto)Sleep Economy Mode, Automatic Restart2 Nylon FiltersSelf-Diagnostic SystemWeather Protection SystemAutomatic Swing Louver ControlMy Temp Comfort SensorBio/HEPA FilterActive Carbon FilterDehumidification FunctionGalvanized Steel Condenser CabinetBlue Fin Technology (Evaporator and Condenser)Healthy Air Evaporator Cleaning SystemHigh Efficiency Heat Exchanger
