Technical Specification FFRA25ESU2-60 Product Type Heavy Duty Color White Performance Certification AHAM Safety Certification UL/CUL(SA11087) Performance BTU (Cool) 25,000 / 24,700 BTU (Heat) 16,000 / 13,000 Dehumidification (Pints/Hour) 8.0 Cool Area (Sq. Ft.) 1,672 Energy Efficiency Ratio 9.4 Electrical Specifications Voltage Rating 208-230V 60HZ Amps (Cool) 12.0 / 12.8 Amps (Heat) 22.5 / 20.0 Watts (Cool) 2,660 / 2,630 Watts (Heat) 4,900 / 4,000 Power Cord Length 5' (6') Plug Type LCDI 6-30P AC Specifications Fan Speeds (Cool) 3 Fan Speeds (Fan) 3 Fan Speeds (Heat) 3 Low Voltage Start-Up Yes Auto Cool Function Yes Energy Saver Yes Filter Check Yes Air CFM (High) 523 Air CFM (Med) 482 Air CFM (Low) 438 Motor RPM (High) 1,130 Air Direction Control 8-Way Noise Level dB (High) 63.2 Noise Level dB (Med) 60.5 Noise Level dB (Low) 58.2 General Specifications Filter Type Anti-Bacterial Mesh Refrigerant R410a
Technical Specification

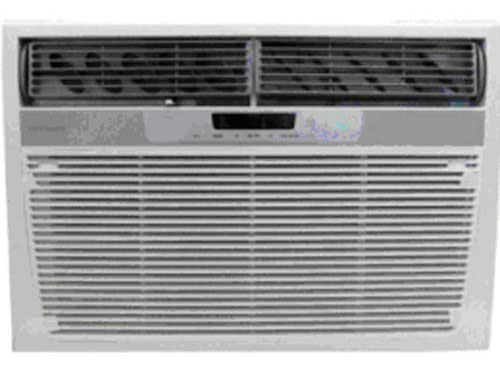

FFRA25ESU2-60
Product Type
Heavy Duty
Color
White
Performance Certification
AHAM
Safety Certification
UL/CUL(SA11087)
Performance
BTU (Cool)
25,000 / 24,700
BTU (Heat)
16,000 / 13,000
Dehumidification (Pints/Hour)
8.0
Cool Area (Sq. Ft.)
1,672
Energy Efficiency Ratio
9.4
Electrical Specifications
Voltage Rating
208-230V 60HZ
Amps (Cool)
12.0 / 12.8
Amps (Heat)
22.5 / 20.0
Watts (Cool)
2,660 / 2,630
Watts (Heat)
4,900 / 4,000
Power Cord Length
5' (6')
Plug Type
LCDI 6-30P
AC Specifications
Fan Speeds (Cool)
3
Fan Speeds (Fan)
Fan Speeds (Heat)
Low Voltage Start-Up
Yes
Auto Cool Function
Energy Saver
Filter Check
Air CFM (High)
523
Air CFM (Med)
482
Air CFM (Low)
438
Motor RPM (High)
1,130
Air Direction Control
8-Way
Noise Level dB (High)
63.2
Noise Level dB (Med)
60.5
Noise Level dB (Low)
58.2
General Specifications
Filter Type
Anti-Bacterial Mesh
Refrigerant
R410a
Filter Type: Anti-Bacterial MeshAmps (Cool): 12.0 / 12.8Watts (Cool): 2,660 / 2,630Amps (Heat): 22.5 / 20.0Watts (Heat): 4,900 / 4,000PerformanceBTU (Cool): 25,000 / 24,700BTU (Heat): 16,000 / 13,000Dehumidification (Pints/Hour): 8.0Cool Area (Sq. Ft.): 1,672ControlsControl Location: CenterSleep Mode: YesControls: ElectronicAC SpecificationsFan Speeds (Cool): 3Fan Speed (Fan): 3Fan Speeds (Heat): 3Low Voltage Start-Up: YesAuto Cool Function: YesEnergy Saver: YesFilter Check: YesRemote Control: Full Function with HeatFresh Air: YesExhaust Vent: YesVents Closed: YesFilter Access: Tilt-OutSlide-Out Chassis: YesCabinet Louvers: YesRear Grill: Yes
