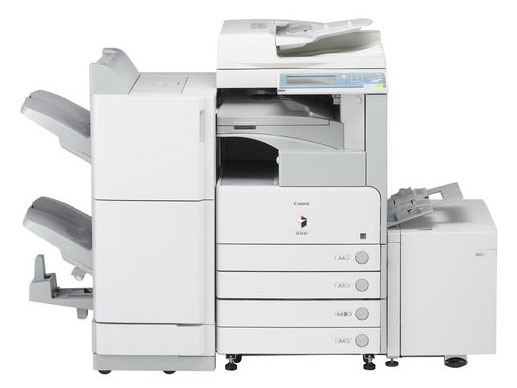

Technical Specification
|
|
Voltage
|
220-240V 50HZ
|
|
Power Consumption
|
1.50kW maximum
|
|
Type
|
Desktop
|
|
Maximum Original Size
|
A3
|
|
Copy Sizes
|
Cassette: A5R - A3
|
|
Stack Bypass: A3 - A5, Free Size (99
x 148mm to 297 x 432mm), Envelopes
|
|
Resolution
|
Reading: 600dpi x 600dpi
|
|
Copying:
1200dpi equivalnet x 600dpi
|
|
Printing: 1200dpi x 1200dpi
|
|
256 Gradations
|
|
Copy/Print Speed
|
A4: iR3225/N: 25ppm B&W
|
|
A3: iR3225/N: 14ppm B&W,
|
|
First Copy Time
|
iR3245/35/N: Less than 3.9 sec
|
|
iR3225/N: Less than 4.9 sec
|
|
Warm-Up Time
|
30 sec or less (10 sec or less from
sleep mode) (non N model)
|
|
35 sec or less (10 sec or less from
sleep mode (N model)
|
|
Multiple Copies/Prints
|
1 to 999 sheets
|
|
Duplexing
|
Standard automatic stackless
|
|
Paper Weight
|
Cassette: 64 to 90gsm
|
|
Stack Bypass: 64 to 128gsm
|
|
Cassette
|
Universal: A5R to A3
|
|
Paper Capacity
|
Standard
|
|
550 sheets x 2 cassettes (1100
sheets)
|
|
Multi Stack Bypass: 50 sheets
(80gsm)
|
|
Optional
|
|
550 sheets x 2 cassettes (1100
sheets)
|
|
Side paper deck: 2700 sheets
|
|
Max paper capacity: 4950 sheets
|
|
CPU
|
Canon Customer Processor, 800MHz +
400MHz
|
|
Memory
|
512MB + 256MB (non N model), 1GB +
256MB (N model)
|
|
Hard Disk Drive
|
60GB
|
|
Interface
|
Ethernet
(1000Base-T/100BAse-TX/10Base-T)
|
|
|
iR3225/N: 220-240V 4A 50/60Hz
|
|
Network Printer Kit
|
|
Optional/Standard
|
Standard for N Model
|
|
Model Name
|
UFRII/PCL Printer Kit-AA1
|
|
PDL
|
PCL5e, PCL6 adn UFRII
|
|
Resolution
|
1200dpi x 1200dpi
|
|
Memory
|
512 + 256MB (non N model), 1GB +
256MB (N model) (uses Main unit Memory)
|
|
Hard Disk
|
60GB (uses Main unit HDD)
|
|
CPU
|
800Mhz + 400Mhz (uses Main unit CPU)
|
|
PCL Fonts
|
Roman80, Bitmap1
|
|
Supported OS
|
PCL: Windows 2000/XP/Server
2003/Server 2008/Vista
|
|
UFRII: Windows 2000/XP/Server
2004/Server 2008/Vista/Mac OSX 10.2.8 or later
|
|
Interface
|
Ethernet
(1000Base-T/100Base-TX/10Base-T), Wireless LAN (IEEE902.11b/g, Optional),
USB2.0
|
|
Network Protocol
|
TCP/IP(LPD/Port9100/IPP/IPPS/SMB/FTP),
IPv6, IPX/SPX (NDS, Bindery), AppleTalk
|
|
Pull Scan
|
Network TWAIN Driver (75 to 600dpi
24bit color/ 8bit grayscale/Black & White)
|
|
Network Printer Kit
|
|
Model Name
|
PS Printer Kit-AA1
|
|
PDL
|
PostScript3 Emulation
|
|
PS Fonts
|
Roman136
|
|
Supported OS
|
Windows 2000/XP/Server 2003/Vista,
Mac OSX 10.2.8 or later
|
|
Mac-PPD: Mac OS9.1 or later, Mac OSX
10.2,8 or later
|
|
Universal Send Kit
|
|
Model Name
|
Universal Send Kit-P1
|
|
Scan speed
|
A4 51ipm 300dpi (color/B&W) with
DADF
|
|
Scan Resolution
|
100dpi, 150 x 150dpi, 200 x 100dpi,
200dpi, 200 x 400dpi*, 300dpi, 400dpi*, 600dpi* (*System Upgrade RAM-A1
required)
|
|
Destinations
|
E-Mail/Internet FAX(SMTP, BW only),
PC(SMB, FTP, NCP), iWDM(FTP), WebDAV
|
|
Address Book
|
LDAP, Local (Max. 1800)
|
|
File Format
|
Single page: TIFF, JPEG, PDF, XPS
|
|
Multi page: TIFF, PDF, XPS
|
|
DADF
|
|
Optional/Standard
|
Standard for N model
|
|
Model Name
|
DADF-U1
|
|
Paper Size
|
A3-A5R
|
|
Paper Weight
|
Single sided original: 42 to 128gsm
|
|
Double sided original: 50-128gsm
|
|
Max. Number of Originals
|
100 sheets (80gsm)
|
|
Document Scanning Speed
|
Copy: A4 45ipm
|
|
Scan: A4 51ipm
|
|
Dimensions
|
565mm (W) x 540mm (D) x 140mm (H)
|
|
Weight
|
Approx. 8kg
|
|
Cassette Feeding Module
|
|
Model Name
|
Cassette Feeding Unit-Y3
|
|
Type
|
2 Front-loading adjustable drawers
|
|
Paper Capacity
|
550 sheets (80gsm) x 2 cassettes
|
|
Dimensions (W x D x H)
|
565mm x 700mm x 252mm
|
|
Weight
|
Approx. 23kg
|
|
Paper Deck
|
|
Model Name
|
Paper Deck-Q1
|
|
Paper Size
|
A4
|
|
Paper Capacity
|
2700 sheets (80gsm)
|
|
Dimensions
|
372mm (W) x 591mm (D) x 473mm (H)
|
|
Weight
|
Approx. 29.6kg
|
|
Finisher
|
|
Model Name
|
Finisher-S1
|
|
Number of Trays
|
One stack tray (Inner) & one
optional tray
|
|
Tray Capacity
|
One Tray
|
|
A4-A5R: 1000 sheets
|
|
A3, A4R: 500 sheets
|
|
Two Trays (optional)
|
|
A4-A5R: 300 sheets on each tray
|
|
A3, A4R: 150 sheets on each tray
|
|
Staple Position
|
Corner
|
|
Staple Capacity
|
A4: 50 sheets
|
|
|
A3, A4R: 30 sheets
|
|
Saddle Finisher
|
|
Model Name
|
Finisher-AE1/Saddle Finisher-AE2
|
|
Number of Trays
|
2 Tray
|
|
Tray Capacity
|
A4-A5R: 1000 sheets
|
|
|
A3: 500 sheets
|
|
Staple Position
|
Corner, Double, Saddle Stitch (AE2
only)
|
|
Staple Capacity
|
A4: 50 sheets
|
|
A3, A4R: 30 sheets
|
|
Saddle Stitch Specifications
|
(Saddle Finisher-AE2 only)
|
|
Paper size: A3, A4R
|
|
Staple Capacity: 1 to 15 sheets (60
pages, 64-80gsm)
|
|
Other Accessories
|
|
Other Accessories (Optional)
|
UFRII Printer Kit-AA1
|
|
Expansion Bus-E1
|
|
Barcode Printing Kit-A1
|
|
Web Access Software-A1
|
|
Web Access Software-G1
|
|
Secure Watermark-A1
|
|
Encrypted Printing Software-C1
|
|
HDD Data Erase Kit-A1
|
|
HDD Data Encryption Kit-B5
|
|
Access Management System Kit-A1
|
|
Wireless LAN Board-A1
|
|
System Upgrade RAM-A1
|
|
Additional Memory Type A (512MB)
|
|
IPSec Board-A1
|
|
Universal Send Advanced Feature
Set-B1
|
|
Universal Send Security Feature
Set-B1
|
|
Digital User Signature Kit-B1
|
|
Super G3 FAX Board-AC1
|
|
iR3100C pedestal
|
|
Envelope Feeder Attachment-C2
|
|
FL Cassette-Y1 (L)
|
|
FL Cassette-Z1(M)
|
|
Platen Cover Type M
|
|
Stamp Ink Cartridge-C1 GP
|
|
Inner 2 way Tray-D1
|
|
Additional Finisher Tray-B1
|
|
Buffer Pass Unit-E2
|
|
Copy Tray-J1
|
|
Puncher Unit-L1 (2 holes)
|
|
Puncher Unit-N1 (4 holes FRN)
|
|
Puncher Unit-P1 (4 holes SWE)
|
|
Puncher Unit-Q1 (2 holes)
|
|
Puncher Unit-S1 (4 holes FRN)
|
|
Puncher Unit-T1 (4 holes SWE)
|
|
Staple Cartridge-J1 GP
|
|
Staple Cartridge-D3 GP
|
|
Card Reader-C1
|
|
Card Reader Attachment-B3
|
|
Document Tray-J1
|
|
ADF Access Handle-A1
|
|
Remote Operators Software Kit-A3
|
|
Voice Guidance Kit-D1
|
|
Voice Operation Kit-B1
|
|
UFRII Printer Kit-AA1
|
|
Expansion Bus-E1
|
|
Weight
And Dimensions
|
|
Product Dimensions
|
30”H x 22.25”W x 27.6”D inch
|
|
Product Shipping Dimensions
|
35.5”H x 22.25”W x 27.6”D inch
|
|
Product Weight
|
163.12 Lb./ 74kg
|
|
Product Shipping Weight
|
180.77 Lb./ 82kg
|
