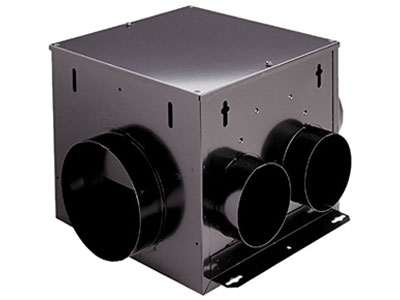

Exhaust Fan 220-240 Volt, Broan BRMP200EX

Exhaust Fan 220-240 Volt,  Broan BRMP200EX


  • 220V 50HZ Multi-Port Remote In-Line Ventilator
  • 210 CFM Air Flow Capacity
  • Ventilator to have steel housing with cover that permits quick access to blower for cleaning or service, without removing ductwork.

Model Name
BRMP200EX
Color
 N/A
Regular Price
$0.00

Discount Available on Bulk Order
Special Price Available for U.S Goverment And Agencies

Technical Specifications

Voltage and Frequency

220V 50HZ

Air Flow Capacity

210 CFM

AMCA Licensed Performance

Amp

1.3A

CFM @ Static Pressure (Ps - Inches of H20)

0.0

224

0.2

210

0.25

208

0.4

200

0.6

189

0.8

174

Nominal RPM

2950

Outlet Duct Size

6" RD

Inlet Duct Size

4" RD

HVI Performance

CFM

0.2" Ps

210

0.4" Ps

200

Selection Guide

0.50 AC/HR*

3120

0. .35 AC/HR*

4457

0. .30 AC/HR*

5200

Certification

CSA certified and HVI certified

UL Listed

Yes

Weight and Dimensions

Product Dimension

9.5" H x 11" W x 10.5" D

Product Shipping Weight

16.3 lbs.

BLOWER:
  • High pressure, centrifugal blowers accommodate many ducting configurations
  • Motors designed for continuous operation
  • Permanently-lubricated motors assure worry-free operation
  • Permanent Split Capacitor(PSC) motors are used for quiet operation and low power consumption
  • HVI certified to assure consistent operating performance
HOUSING:
  • Rugged 20 gage steel housing finished with electrically bonded epoxy paint
  • May be installed in virtually any orientation - ceiling, wall or floor
  • In-line installation assures quiet operation
  • Easily removable panel permits quick access to blower for cleaning and servicing without disturbing ductwork
  • (4) 4" round inlets and 6" round outlet for easy duct connections
  • All wiring and ductwork can be connected from the outside of the housing - no need to remove access panel or blower.
  • U.L. listed
  • CSA certified and HVI certified
