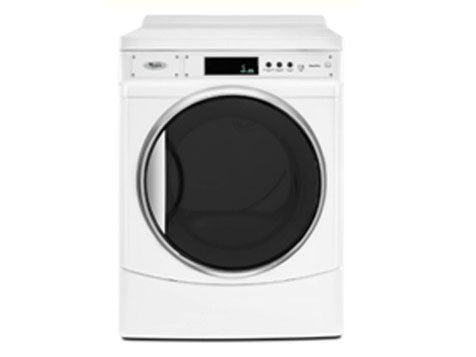

Semi-Prom Electric Dryer 220-240V 50HZ Whirlpool 3LCED9100WQ

Technical Specification

Fuel

Electric

Country of Origin

US

Misc.

Pedistal Option (not included)

Yes- 4" w/1" adjustable foot
(optional kit)

Capacity

6.7 cubic feet

Drum Speed (RPM)  +1

49 RPM

Motor Speed

1725 to 1750 RPM

Door Style Timing Funding TBD for DOTT

Reversible Side Swing

Door Opening  Angle

135 deg

Door Opening Size

191 sq in

Door Screen Color

Same as residential version

Inner Door Ring Color

Shelly Chrome (existing Kenmore door)

Door Handle Material

Plastic

See-Thru Door

Yes

Product Color

White

Console Color

White

Console Language

English / Symbols

Lint Screen Lid

Yes

Cabinet Finish

Powder Coat

Drum Material Finish

Powder Coat - Whtie

Reasons To Believe

Speed Increaser

Yes

CFM

240

Vent Rating

90-3-H or greater

Top

Porcelain

Drive Belt

5 Rib Belt

Thick Walled Baffles

Yes

Horizon Lint Filter Assy

Yes

Horizon Outlet Grill Assy

Yes

Increased Heater Element Wire Dia. (if needed)

TBD

Hole and Pin Security Assy

Yes (need definition)

Electrical Requirements

Voltage

220 - 240V

Frequency

50 Hz

Power Cord

Not Included

Circuit Breaker requirements (amps)

AUS = 30 amp;
All other hard wired 30 amp circuit

Fuel Rating

Wattage/BTU

4600 W

Safety Agency Electrical Rating

4.6 Kw

Feedback/Displays

Cycles (all timed)

3

Regular/Heavy (High) (Whites/Colors)

Yes

Permanent Press (Medium)

Yes

Knits/Delicates (Low)

Yes

0 minutes

Yes

Performance

SCFM (CFM corrected for barometric conditions)

240

Vent rating

90-3-H or greater

Noise

Same as Silverado dryer

Vibration

Same as Silverado dryer

Operating Temp (degrees F)

40 - 115

Floor Type

Wood, cement, tile  - soft/hard

Controls

Temperatures

High, Medium, Low

USER Interface

Push Button (round)

VF Display

Yes

MANAGEMENT SYSTEM FEATURES

Full Width Console

Yes

Approvals

RoHS

Yes

IEC IV (BEAB / GL)

Yes

Load Size (cu/ft)

6.7

Style Master Requirements

Semi-Pro & Book icons

CLAIMS

Turbo Dry™

Yes

Long Vent

Yes

LITERATURE

Languages

English, Spanish, French, Italian, German

Installation Instructions

Yes

Parts List

Yes

Wiring Diagram

Yes

Zip Bag Envelope Assembly

Yes

Tech Sheet

Yes

LABELS

Languages

TBD

Dimension & Weight

Height

39.25”

Width

27”

Depth

29”

Product Weight

133 lbs.

Carton Dimensions (W x D x H)

29" x 31" x 40"

Shipping Wt

144 lbs
